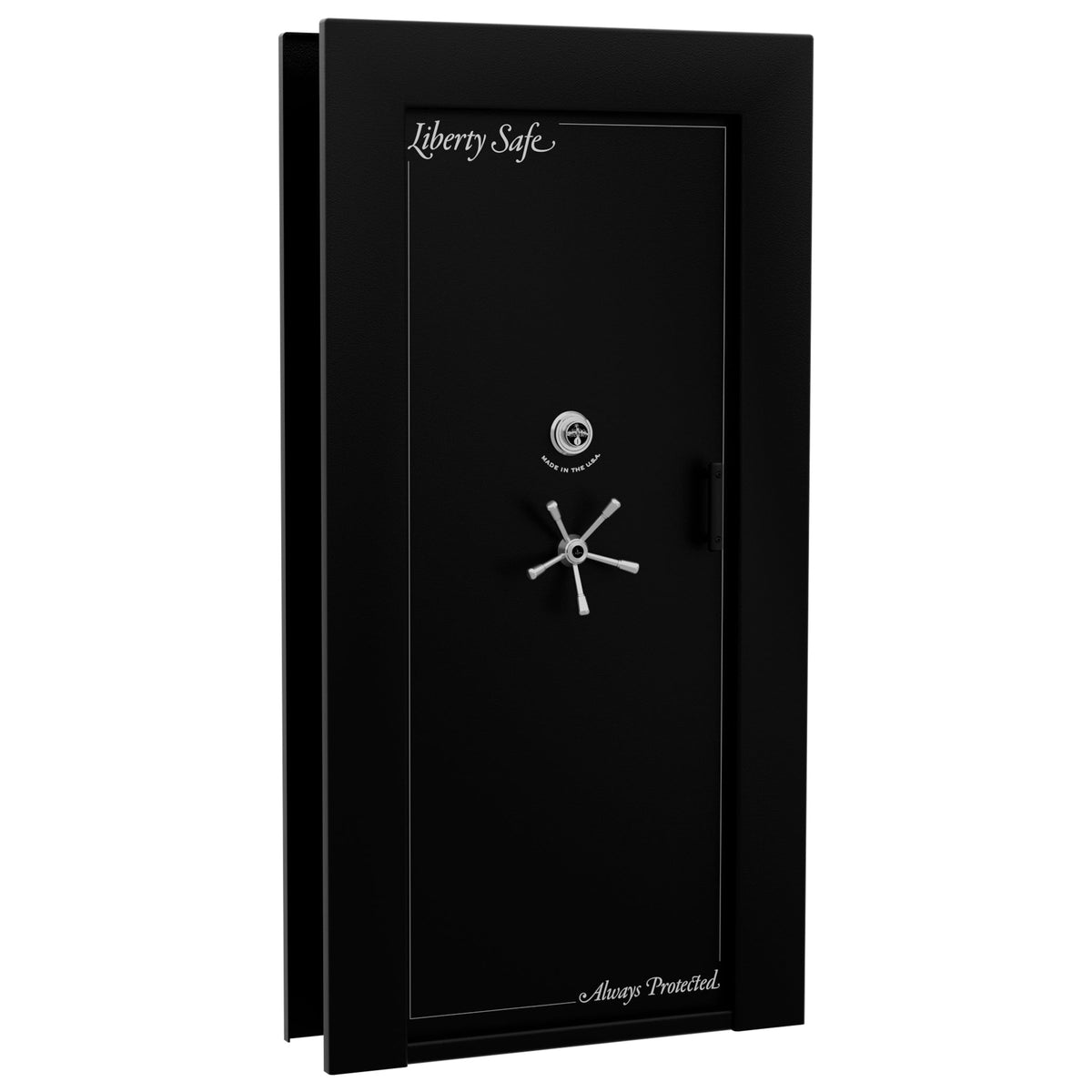

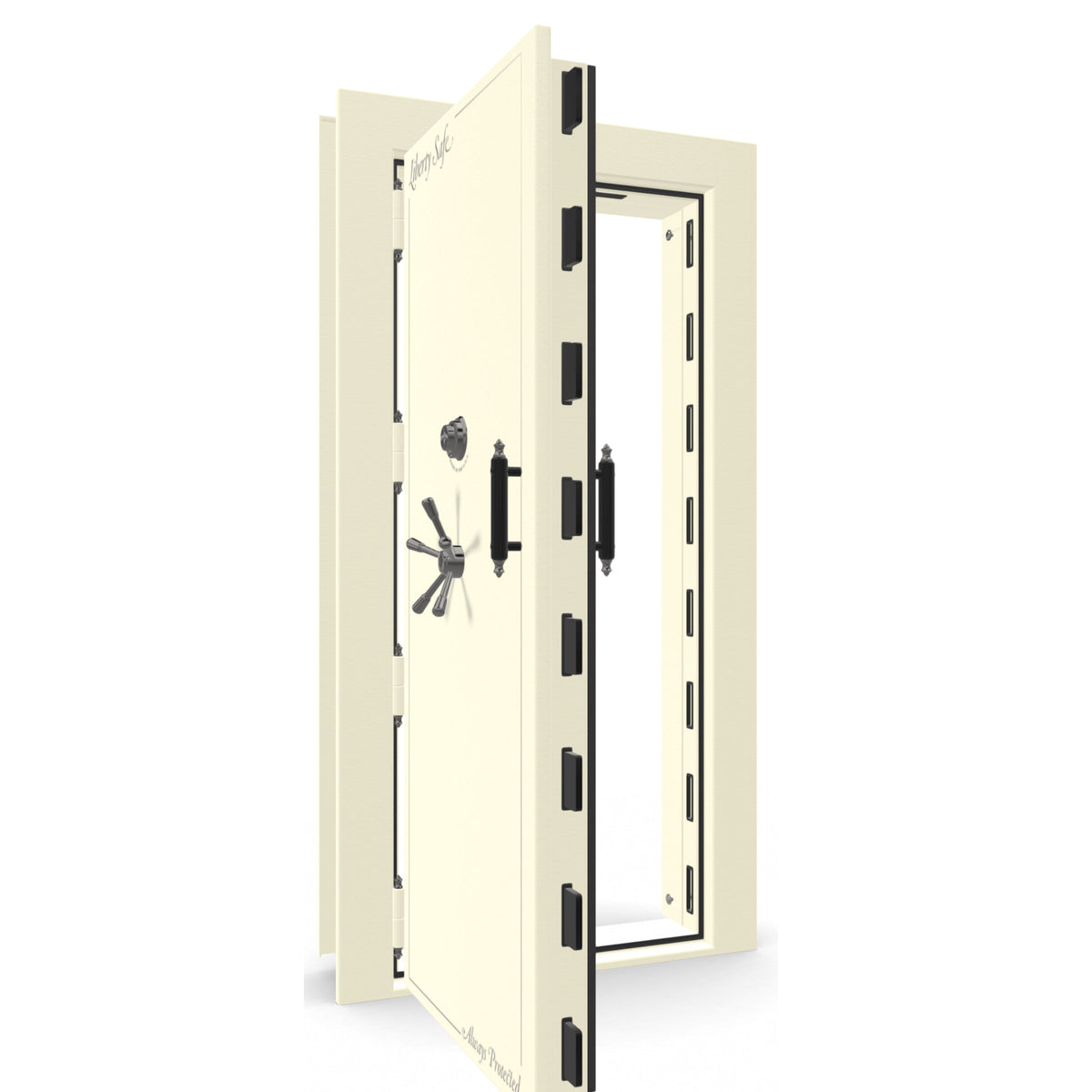

    Vault Door Series

    The Vault Door combines style with superior theft and fire protection for an elegant look that fits any decor. Massive 4-inch military style locking bars that are 1/2 inch thick will defend against any pry attacks. 2.5 hour fire rated door and heat-expanding Palusol door seal protects from smoke and heat. Vault Door includes both inside release 3-point handle and inside lock lever to lock door from the inside as a panic room. If your plans include a whole room full of items to protect...Liberty's Vault Door will get the job done.

    * Please Call for Installation options and pricing.

    Color options listed above are our top selling colors. If you would like to buy one of the other color options, please give us a call.

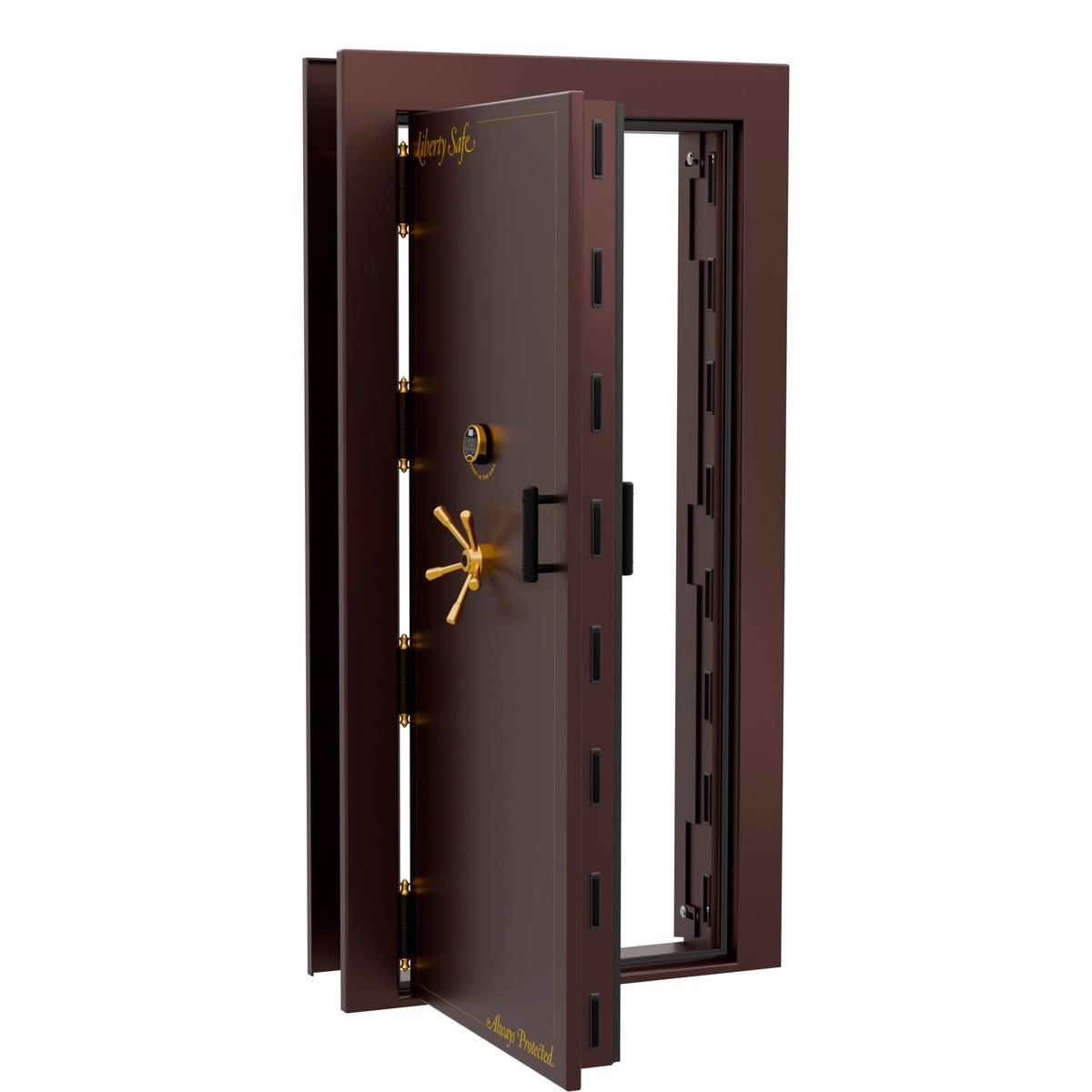

    Vault Door Colors

    Click to View Vault Door Specs | Drawings


    Made in the U.S.A | Lifetime Warranty

    Vault Door
    Vault Door
    Vault Door Blockade

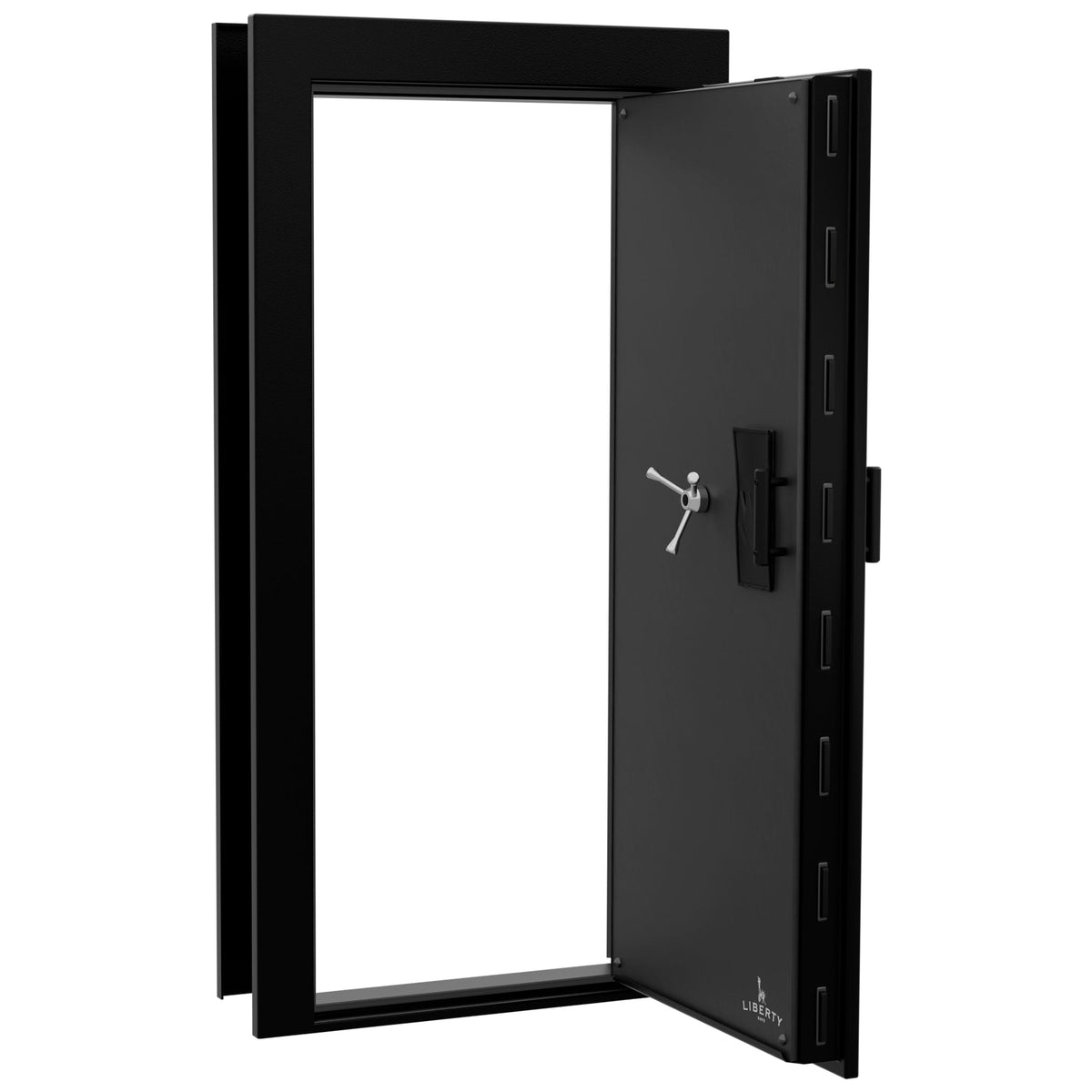

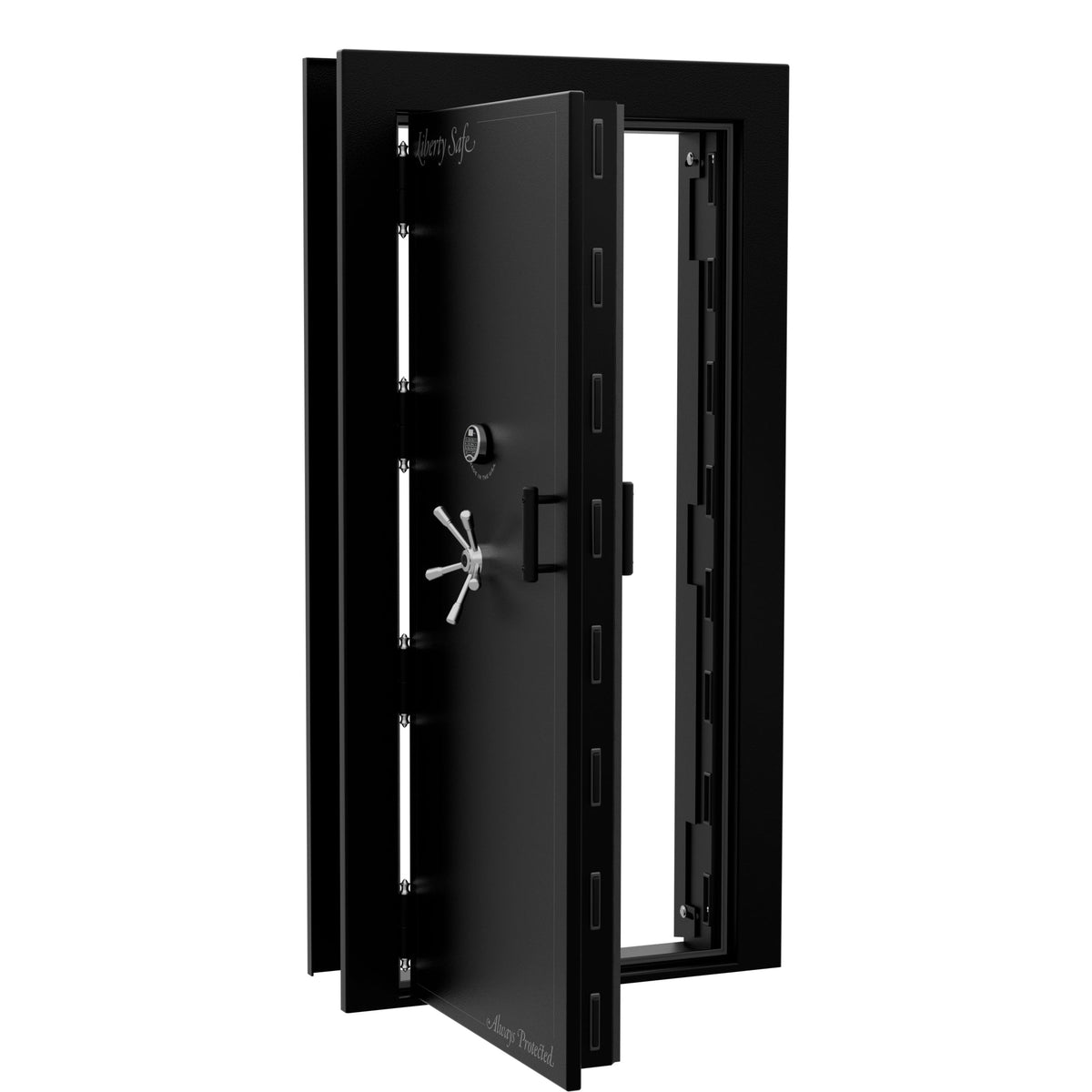

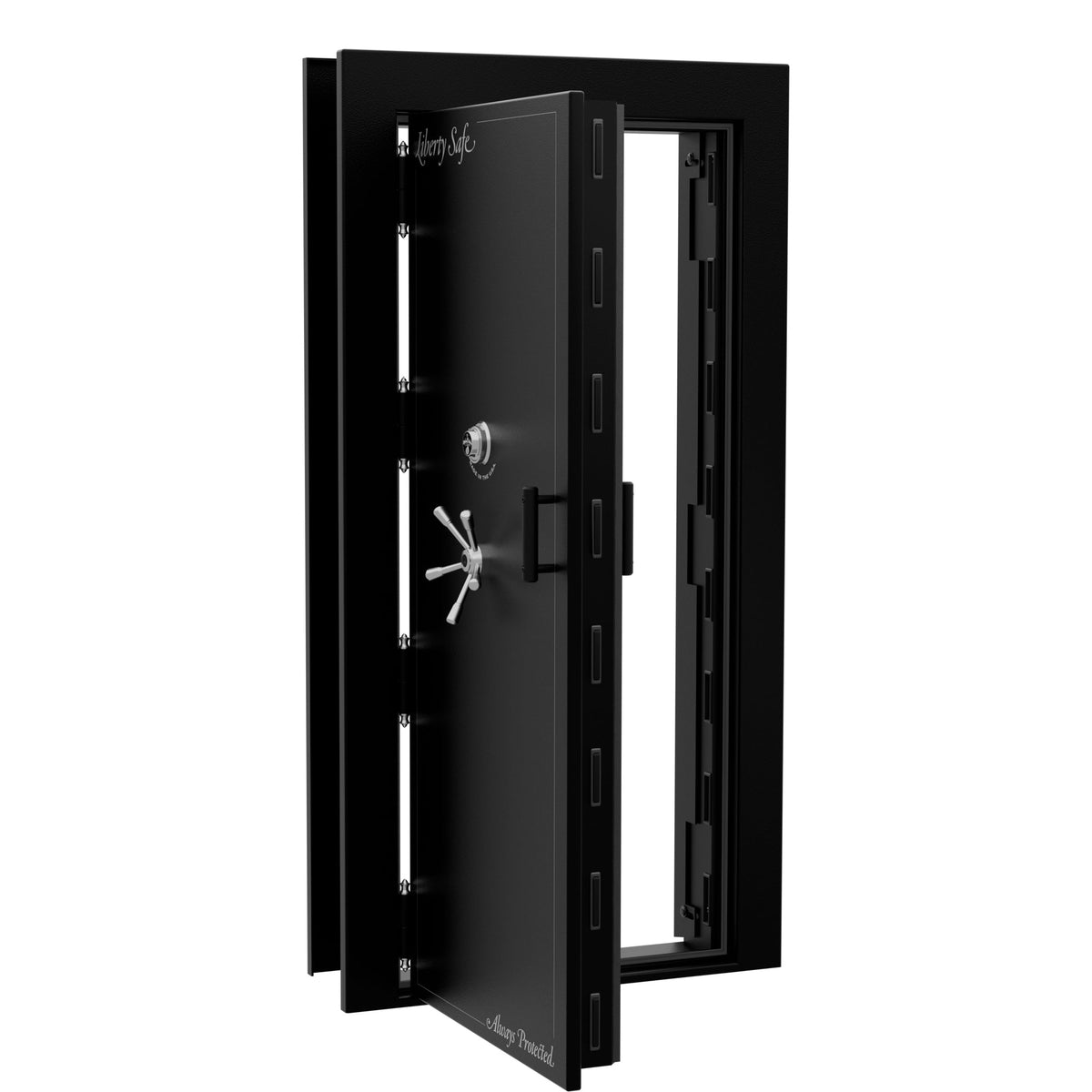

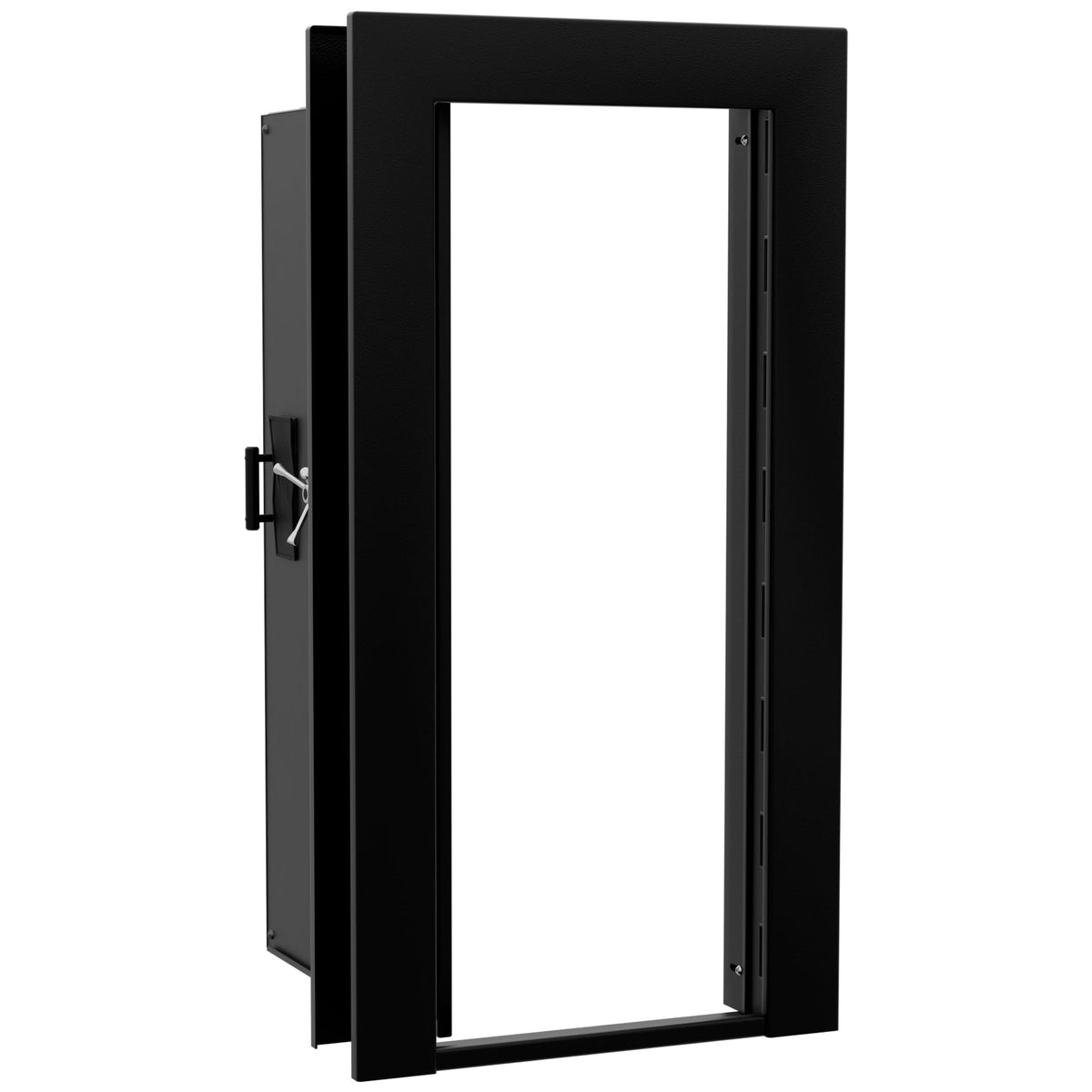

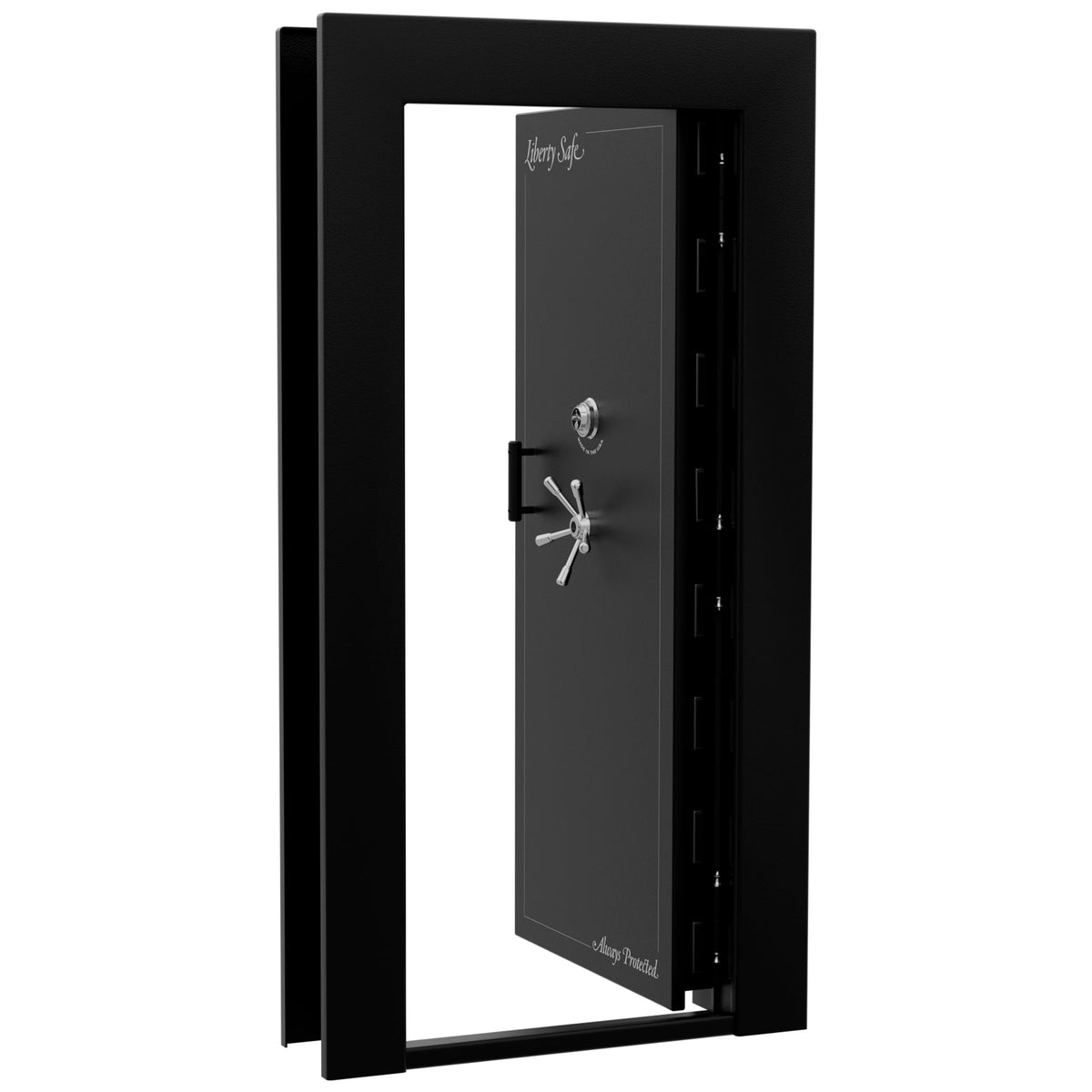

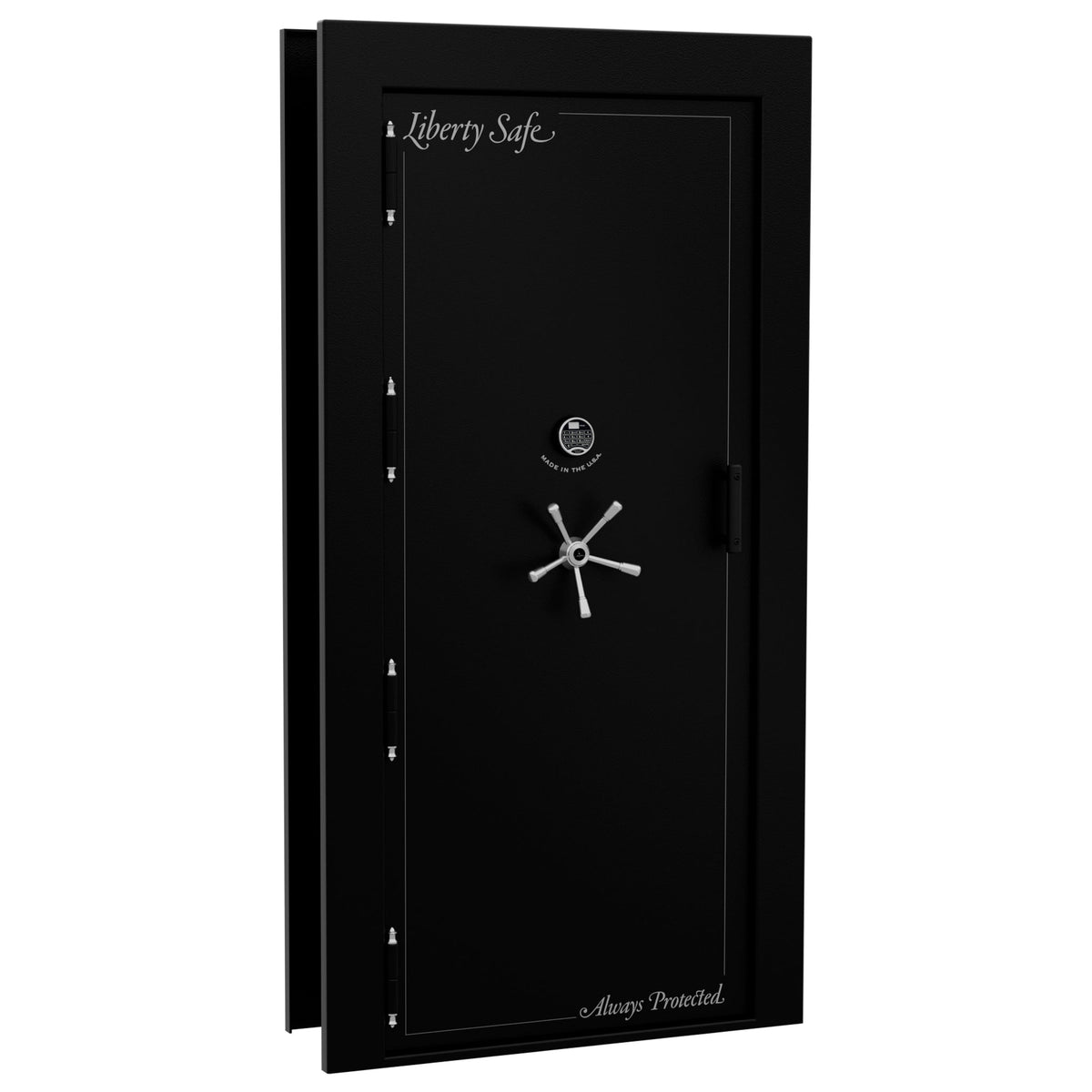

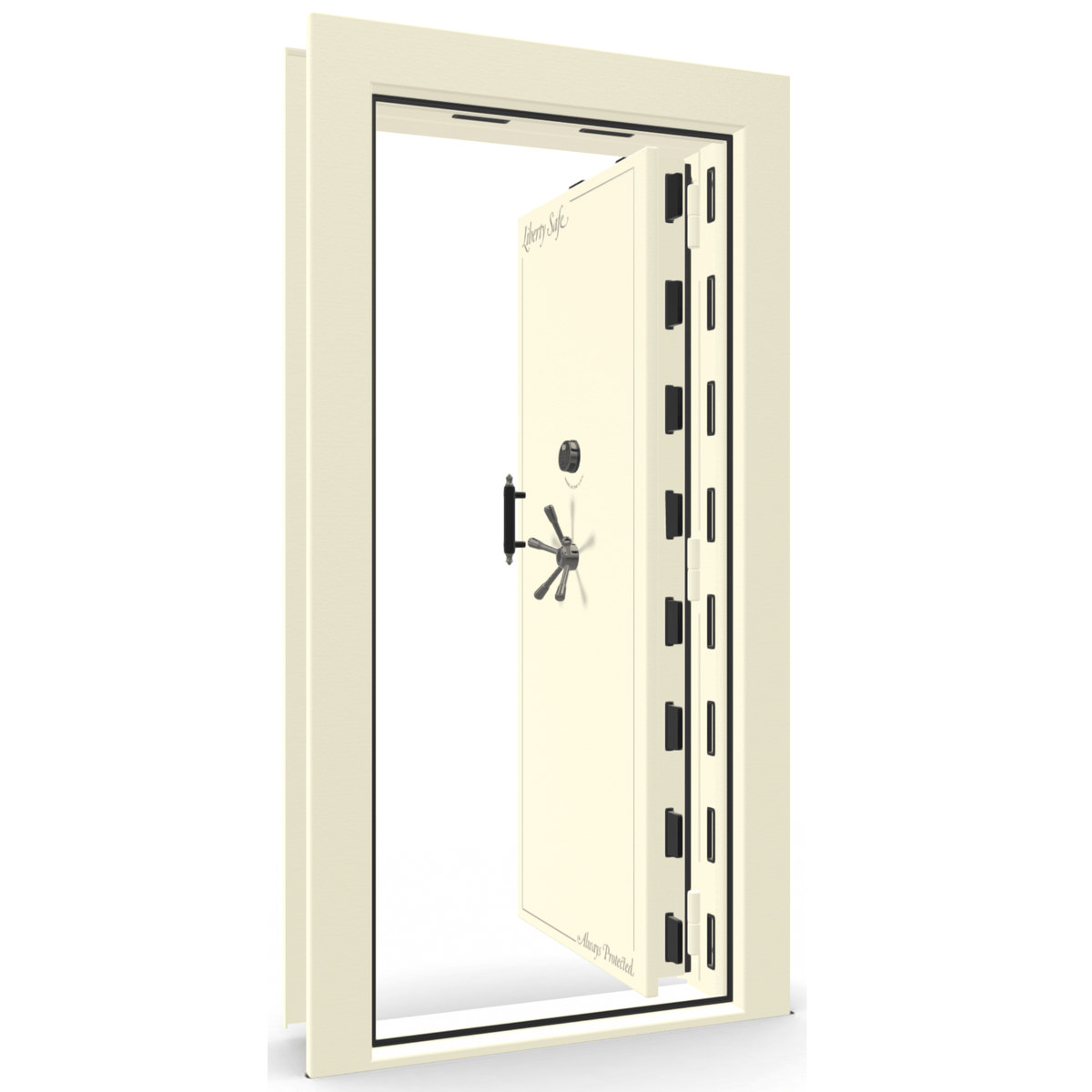

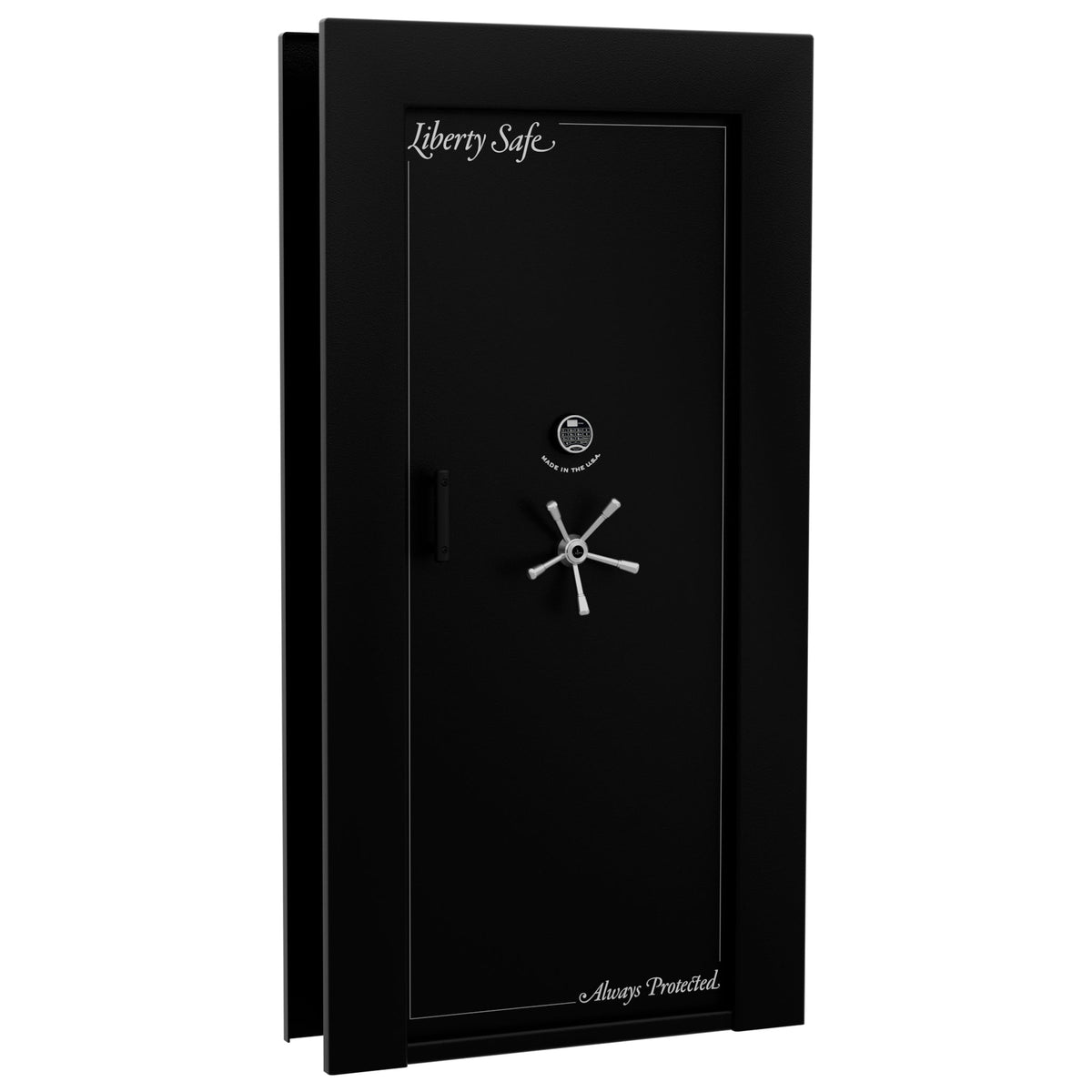

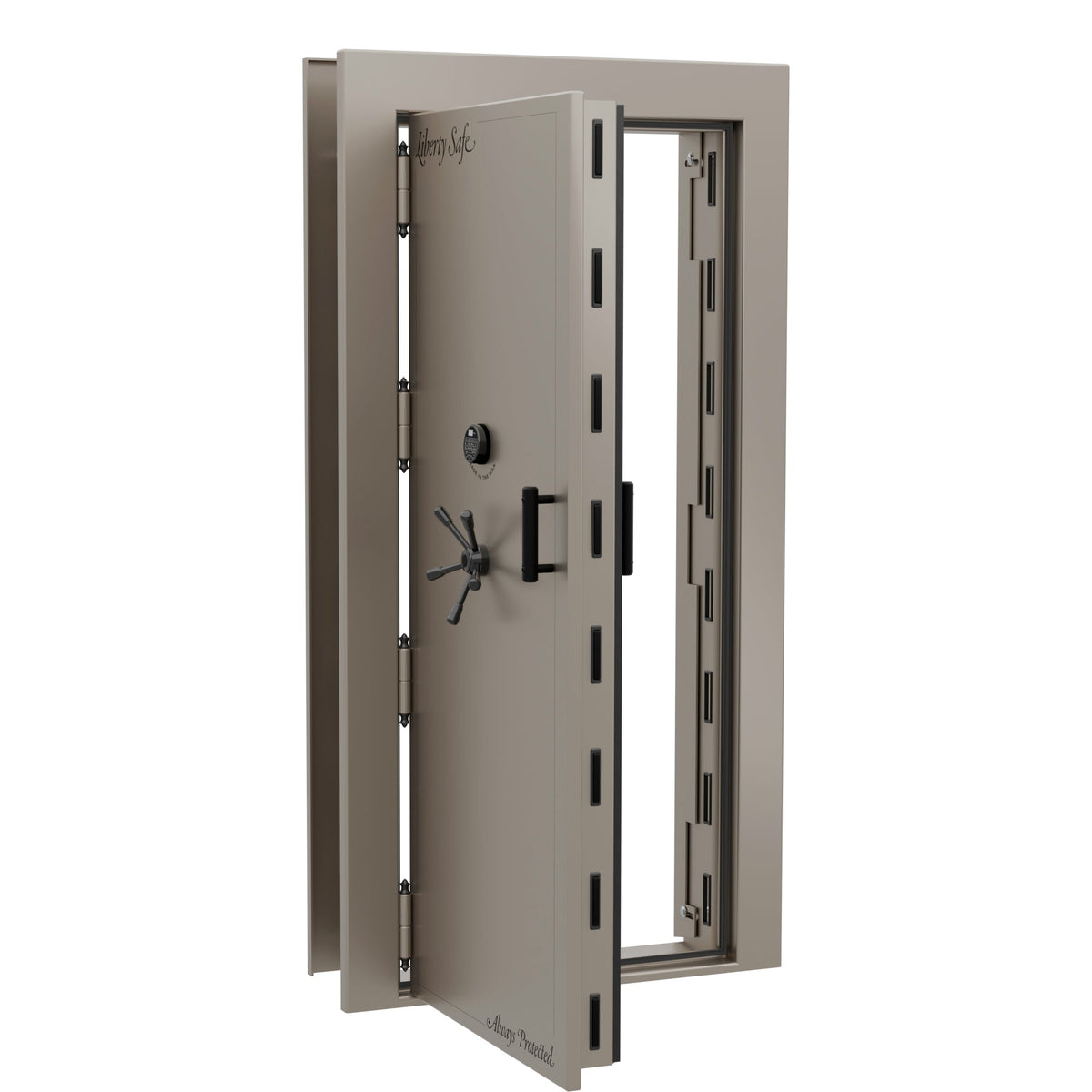

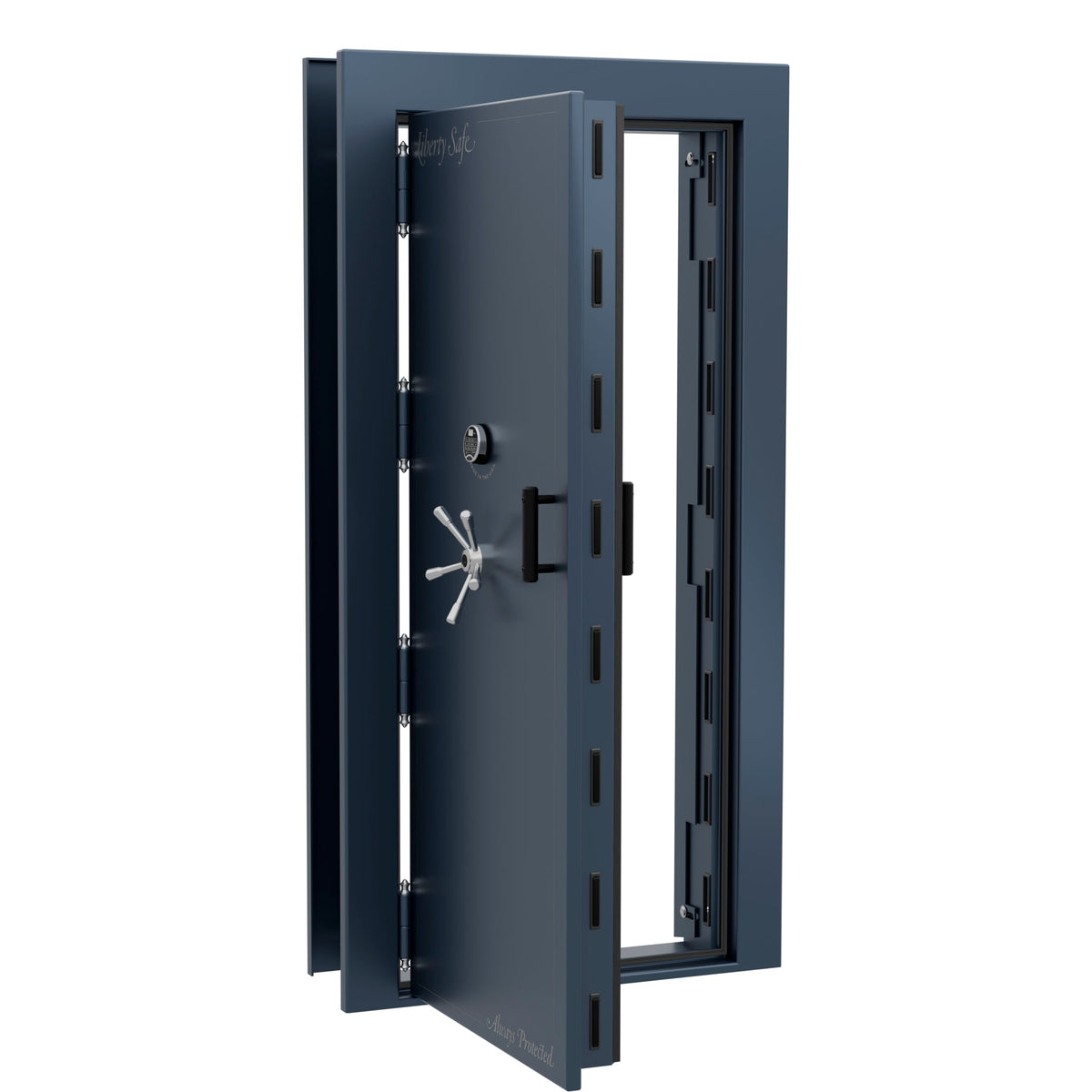

    Model VAULT DOOR – OUTSWING VAULT DOOR – INSWING

    VAULT DOOR | BLOCKADE – INSWING

    # of Locking Bars 18 18 6
    Locking Bar Thickness 1/2" 1/2" 1/4"
    Door Dimensions 79” x 34” 77” x 30.5” 78.5” x 29.5”
    Walkthrough Clearance If door is opened 90°, clearance is 27”; if opened 180°, clearance is 32” Door opens to 90°, giving you a clearance of 26.5” Door opens to 90°‚ giving you a clearance of 29.5”
    Threshold Height 1.875” 1.875” 1.875”
    Rough Opening Requirement 81”-85” H x 37”-42” W x 7”-10” D 82.5”-85” H x 39”-42” W x 7”-9” D

    For clamshell installation: 82”-85” H x 38”-42” W x 7”-9” D; For bolt-in installation: 82”-85” H x 38”-42” W x 5” or greater D

    Hinge Options Both left-hand swing and right-hand swing available Both left-hand swing and right-hand swing available Both left-hand swing and right-hand swing available
    Weight 1,245 lbs. 1,245 lbs. 655 lbs.

    MEASUREMENTS: Measurements and dimensions are + or - 1/8" to all measurements for manufacturing variances.

    Made in the U.S.A. from U.S. and Global Parts.

    SECURITY:

    VAULT DOOR
    • UL listed Sargent and Greenleaf mechanical lock (electronic lock also available)
    • High-end gear-driven door with ¼” steel plate
    • Heavy-duty steel frame

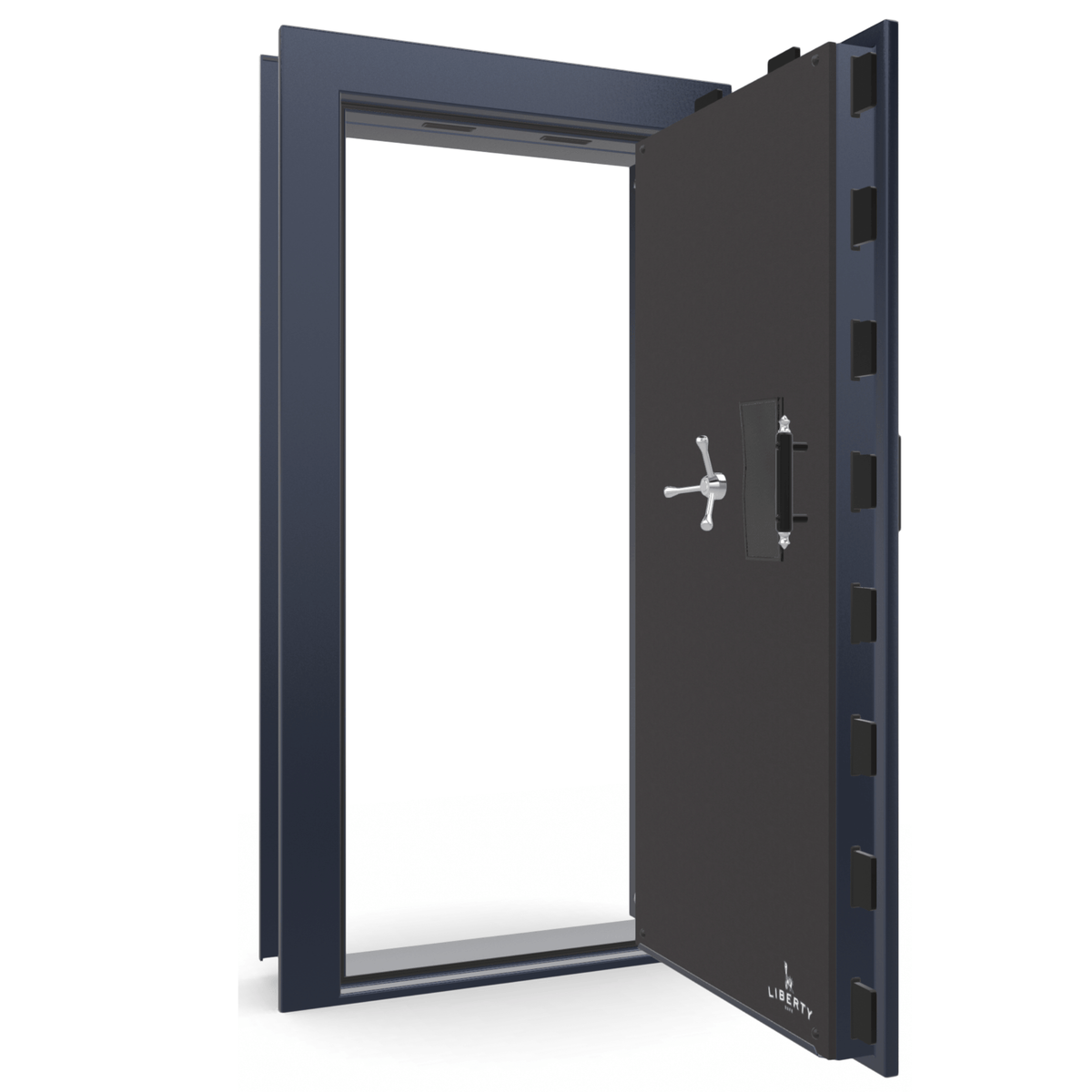

    • Internal lockout mechanism for use as a panic room
    • Upgraded ball-bearing hardplate to protect the lock from drill attacks
    • Dual relocker locks the door down in the event of attempted brute force entry
    • Liberty’s exclusive, ultra-strong locking bars protect against pry attacks
    • Slip-clutch mechanism protects against forced entry
    BLOCKADE VAULT DOOR
    • UL listed SecuRam toplit electronic lock
    • Solid door with ¼” steel plate
    • Internal lockout mechanism for use as a panic room
    • Hardplate to protect the lock from drill attacks
    • Dual relocker locks the door down in the event of attempted brute force entry
    • Liberty’s exclusive, ultra-strong locking bars protect against pry attacks
